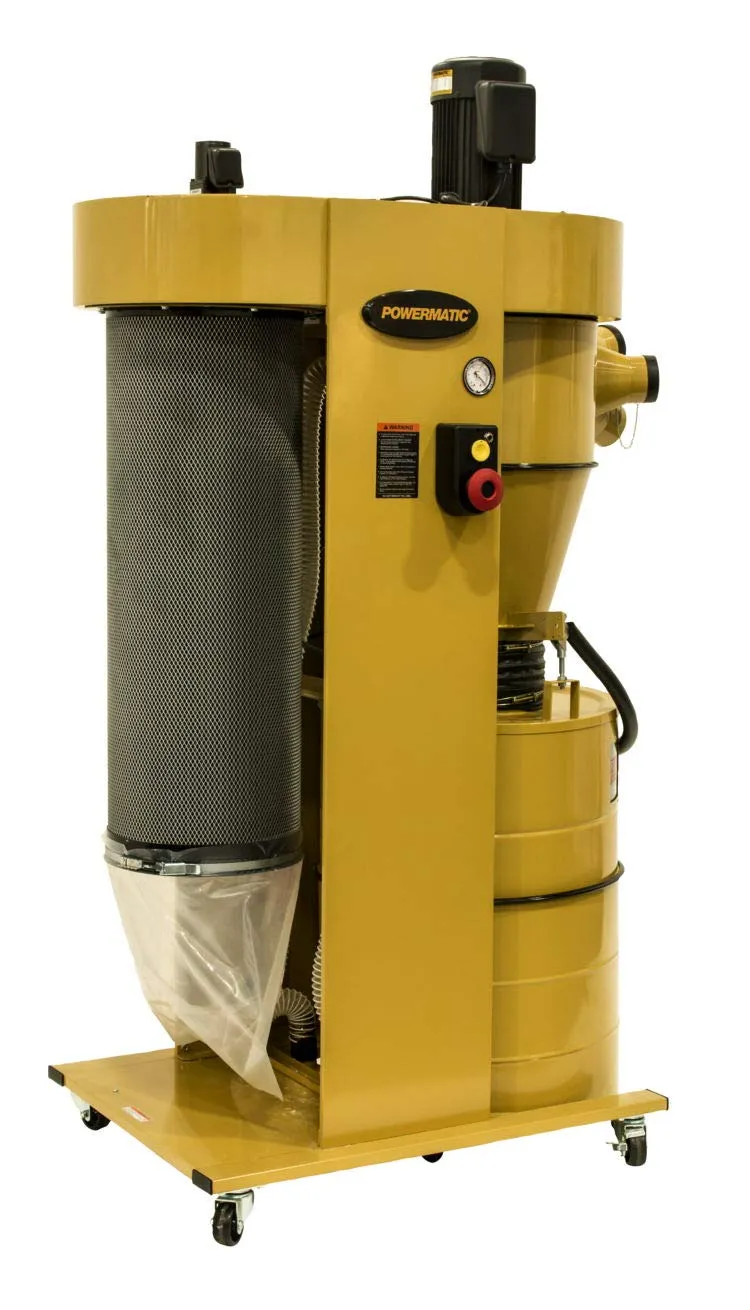

Introducing the Powermatic PM2200 Cyclonic Dust Collector with HEPA filtration. The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stable base for quiet operation and minimal vibration. The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.
- Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life
- One-handed drum release allows for simple removal of the drum for bag changes
- Vacuum pressure gauge for greater user feedback
- HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron
- Multiple hose mounting options: three 4" dust ports or one 8" dust port
- Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
- Powerful 3 HP motor moves 1,543 Cubic Feet of air per Minute
| Style (Type) | Cyclonic |
| Air Flow @ 8" (CFM) | 1543 |
| Number of Air Inlets | 1(8") or 3(4") |
| Efficiency (Micron) | 0.3 |
| Static Pressure (WC) | 14.3 |
| Sound Rating (DB) | 78 |
| Collection Bag Capacity (Cu. Ft.) | 55 |
| Collection Bag Length (In.) | 31-3/8 |
| Impeller Diameter (In.) | 15-7/8 |
| Impeller Material | Steel |
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Current (Amps) | 16 |
| Recommended Circuit Size (Amps.) | 30 |
