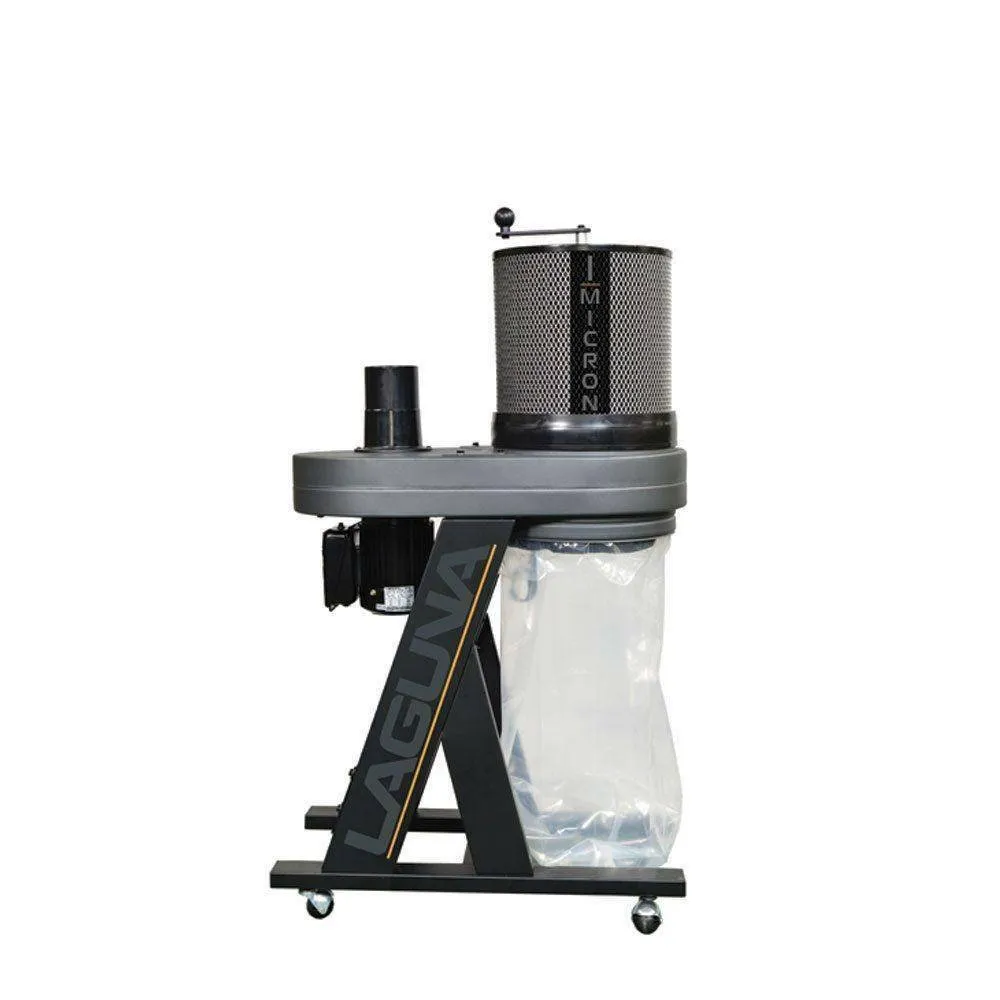

MDCBF1110C1M, Laguna B|Flux 1hp 110v Canister Dust Collector
The most beautiful single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.
The b|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.
Features:
- Motor: 1HP
- Phase: 1
- Voltage: 110v
- Amps: 8.4 Amps
- Recommended Breaker: 15 Amps
- Hertz: 60
Specifications:
-
Plug: Yes -
RPM: 3450 -
Switch Type: Motor Mounted Direct Switch -
Hand Held Remote: None -
Shop Setting CFM: 550 -
Inlet CFM: 650 -
Max Static Pressure (Inches of Water): 4.86″ -
Impeller/Fan Size: 9″ -
Impeller Material: Steel -
Impeller Type: Radial Fin -
Balanced To: ISO 1940 -
Inlet Diameters: 4″ x 1 Port -
Drum Collection Bag (Dia. x L): Plastic Bag (350 x 980mm) -
Canister Filter Type: 1 Micron
-
Filtration Efficiency: 0.2 – 2 Micron at 99.97% -
MERV Rating: 12 -
Canister Diameter: 360mm (14.2″) -
Canister Length: 300mm (11.8″) -
Filter Surface Area: 1.6m² / 17.2ft² -
Canister Cleaning: Manual Handle Crank 360° -
Wheels: 2″ Ball Caster -
CSA Approved: Yes -
Decibel Reading: 76 dB (At 9.8ft) -
Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736 x 376 x 1280mm -
Shipping Weight: 77lbs -
Shipping Dimensions (L x W x H): 32in x 20in x 25in
